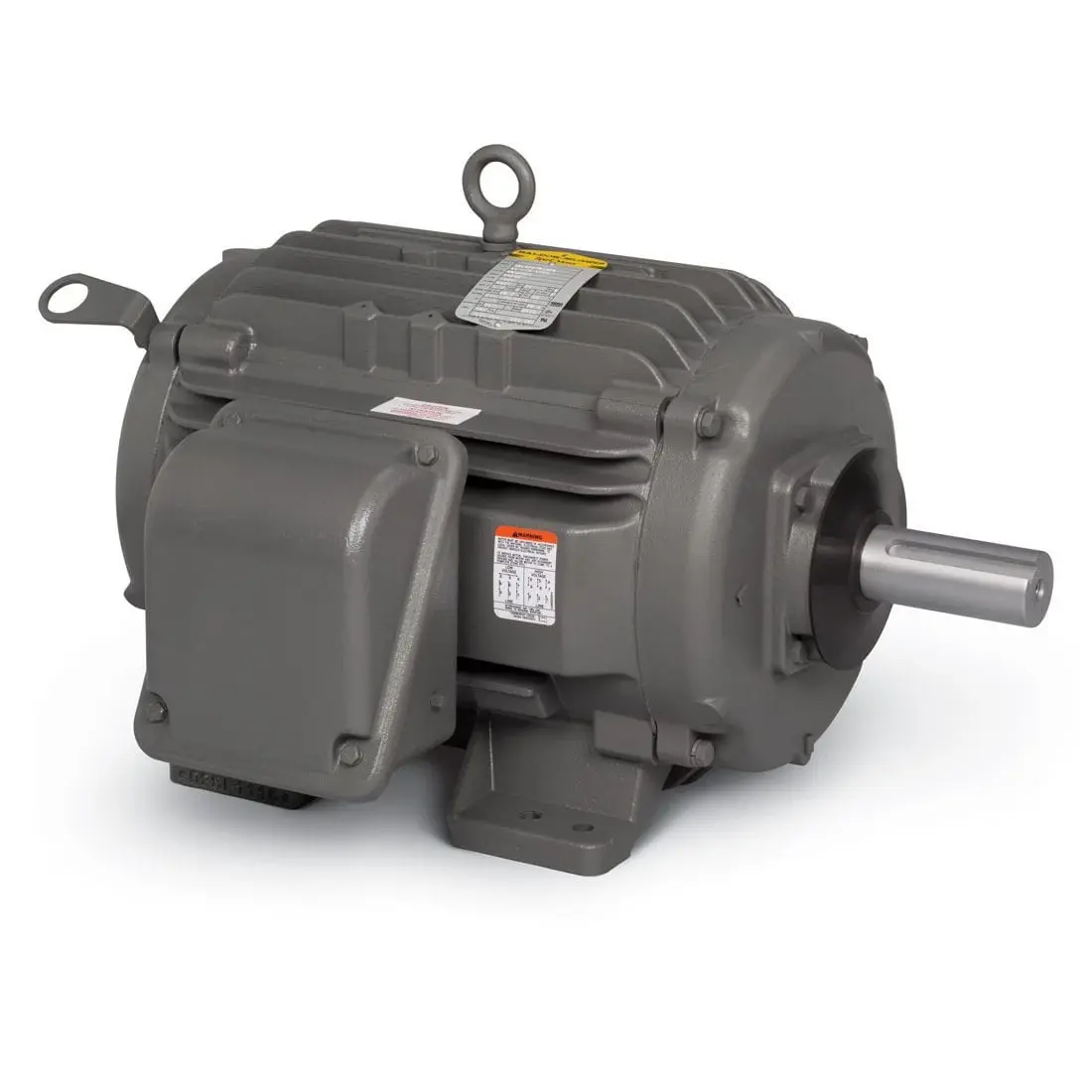

ABB CTM series Cooling Tower Motor

ABB CTM Series Cooling Tower Motor – Overview & Key Features

The ABB CTM series Cooling Tower Motor, part of the Baldor-Reliance severe-duty HVAC line, is purpose-built for reliability in wet, demanding, and corrosive environments. Designed for OEM replacement or retrofit, it combines rugged mechanical construction with moisture-sealed electrical protection to keep commercial and industrial cooling systems running efficiently with minimal downtime.

• Severe-duty cast iron frame with corrosion-resistant hardware and protective coatings built to withstand the toughest outdoor and process-cooling environments.
• Four-barrier shaft sealing on the drive end combining a lip contact seal, V-ring slinger, dome slinger, and double-sealed bearings.
• IP55 ingress protection with a lipped conduit lid and lead separator gasket for enhanced moisture defense.
• Inverter-duty insulation system enabling variable frequency drive (VFD) compatibility, soft-start operation, and precise speed control.
• Moisture-sealed windings and bearings to prevent electrical degradation and premature wear in high-humidity HVAC installations.

Practical Applications & How It Works

The ABB CTM series motor is engineered to drive fans on cooling towers, chillers, and air-handling units exposed to constant moisture, chemical vapors, and temperature cycling. Its IP55-rated enclosure and four-barrier shaft sealing prevent water ingress and bearing contamination, while the inverter-duty insulation allows precise speed modulation for energy-efficient HVAC operation. Typical deployments include commercial rooftops, industrial process cooling, data center chilled-water loops, and retrofit projects replacing older, less-efficient motors.

As a global supplier of industrial spare parts with over 20 years of industry experience, Spare Parts Map sources and delivers the ABB CTM series motor to facilities across Europe and worldwide. Our team responds quickly to specification requests, verifies frame size, voltage, and mounting compatibility, and coordinates safe delivery of heavy industrial components — so you can quote, plan, and install with confidence.

Frequently Asked Questions (FAQ)

Q: Is the ABB CTM series Cooling Tower Motor suitable for outdoor rooftop installations? A: Yes. The CTM series carries an IP55 protection rating and features a corrosion-resistant cast iron frame, moisture-sealed windings, and four-barrier shaft sealing, making it well-suited for outdoor, rooftop, and high-humidity cooling tower applications.

Q: Can the ABB CTM motor be used with a variable frequency drive (VFD)? A: Yes. It is built with inverter-duty insulation, allowing direct connection to a VFD for variable-speed fan control, soft starts, and improved energy efficiency in HVAC systems.

Q: What maintenance does the CTM series Cooling Tower Motor require? A: Routine maintenance includes periodic bearing inspection and lubrication per ABB Baldor-Reliance service intervals, checking shaft seals for wear, and verifying that the conduit lid and lead separator gasket remain intact to preserve the IP55 rating.

Q: How can I request a quote for the ABB CTM series motor? A: Contact Spare Parts Map with your required frame size, voltage, RPM, and mounting configuration. Our team responds quickly with current availability, lead time, condition (new or reconditioned), and worldwide delivery options.
