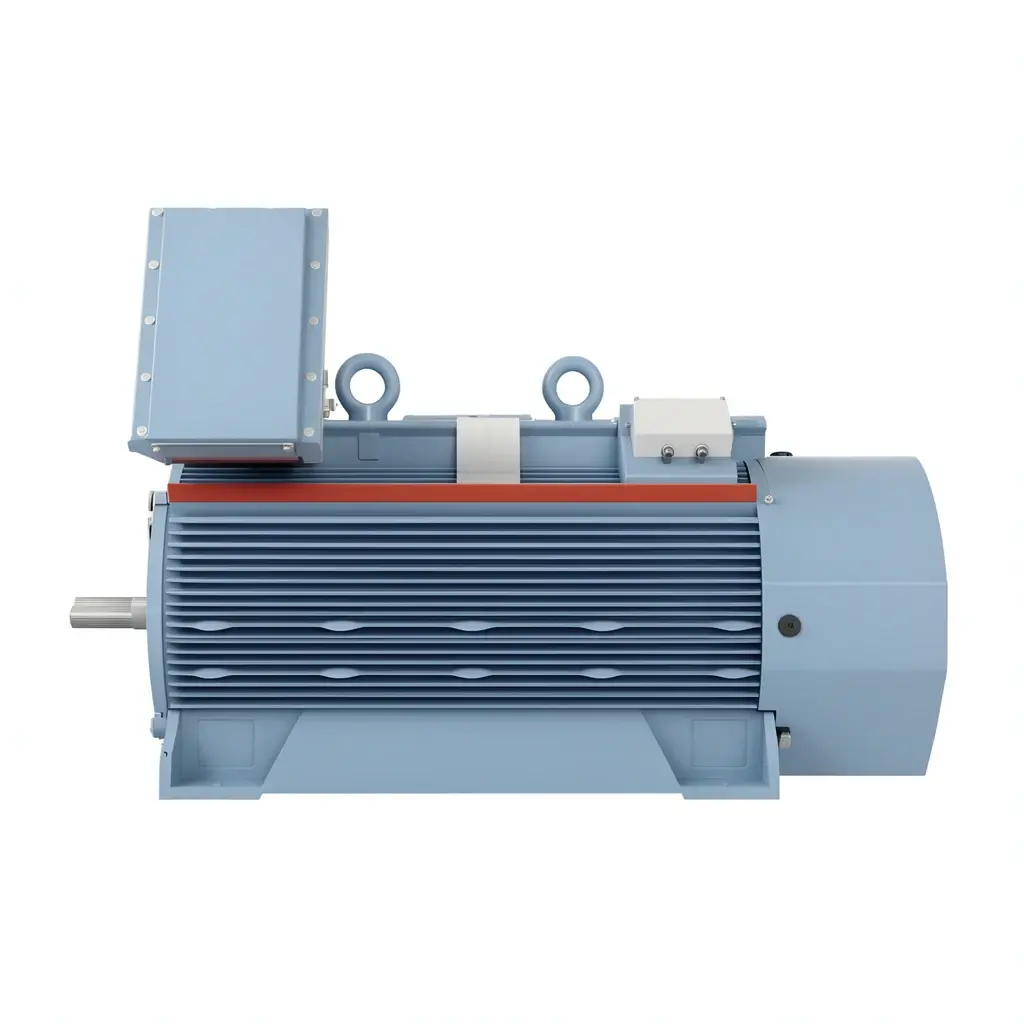

ABB NMK High Voltage Slip-Ring Induction Motor

Overview & Key Features

The ABB NMK is a high voltage modular induction motor equipped with a slip-ring rotor, designed to deliver high starting torque while drawing low starting current. This combination makes it a preferred solution for heavy-duty industrial drives where standard squirrel-cage motors cannot meet the mechanical and electrical demands of the application. Backed by more than 20 years of industrial sourcing experience, Spare Parts Map supplies this ABB motor to operators across Europe and worldwide, responding quickly to inquiries and ensuring that genuine units are delivered without problems.

Key features include:

• High starting torque with reduced starting current, ideal for heavy inertia loads
• Wide power range to cover demanding industrial applications
• Multiple cooling options (open air, air-to-air, and air-to-water heat exchangers) to match site conditions
• Compatible with both Direct-On-Line (DOL) and Variable Speed Drive (VSD) operation
• Modular, customizable design for flexible mechanical and electrical integration
• Digital access to online Factory Acceptance Testing (FAT) reports
• Engineered to minimize mechanical stress at start, extending driven-equipment lifetime

Practical Applications & How It Works

The slip-ring rotor uses external resistors connected through the slip rings and brush gear to control acceleration. At start-up, resistance is inserted to limit inrush current and maximize torque; the resistance is then gradually cut out as the motor approaches rated speed. This controlled ramp dramatically reduces mechanical shock on couplings, gearboxes, and driven machinery, while also preventing voltage dips on weak supply networks.

Typical real-world use cases include:

• Mill drives in mining and cement plants where high inertia loads must be brought up smoothly
• Crushers, conveyors, and compressors in metal and chemical processing facilities
• Pulp and paper machinery that requires reliable starts under variable load conditions
• Remote or weak-grid sites where low starting current is essential to avoid network disturbances

Through Spare Parts Map's global supply network, customers can request a quote for the ABB NMK and receive prompt confirmation of availability, lead time, condition, and worldwide delivery options, supporting minimized downtime throughout the motor's lifecycle.

Frequently Asked Questions (FAQ)

Q: What is the main advantage of a slip-ring motor compared to a standard squirrel-cage induction motor? A: A slip-ring motor delivers significantly higher starting torque while drawing much lower starting current. External rotor resistance is adjustable during start-up, which protects both the motor and the driven machinery from mechanical and electrical stress.

Q: Can the ABB NMK be operated with a variable speed drive (VSD)? A: Yes. The ABB NMK is designed for both Direct-On-Line (DOL) and VSD operation, giving plant engineers flexibility to optimize speed, torque, and energy consumption based on process requirements.

Q: Which industries typically use the ABB NMK slip-ring motor? A: It is widely deployed in chemical, metal, mining, cement, and paper and pulp industries, especially for heavy load inertia applications such as mill drives, crushers, and large conveyors.

Q: How does Spare Parts Map support customers who want to order this motor? A: With over 20 years of experience, Spare Parts Map responds to quote requests quickly, confirms stock and lead time, and coordinates worldwide delivery so the ABB NMK reaches your facility without complications. There is no online purchase option; simply Request a Quote to begin.
