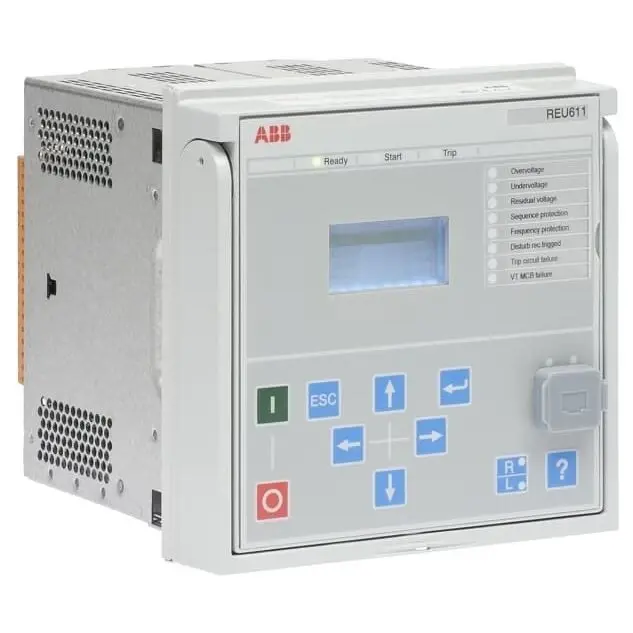

ABB REU611 Voltage Protection Relay

Overview & Key Features

The ABB REU611 is a dedicated voltage protection relay, pre-configured and factory-tested to deliver voltage- and frequency-based protection across utility substations and industrial power systems. Engineered for large-size power stations and small power units, the unit consolidates overvoltage, undervoltage, sequence, residual overvoltage, and two-stage frequency protection in a single compact device.

Atomic Answer: The ABB REU611 is a pre-configured voltage protection relay that provides overvoltage, undervoltage, sequence, residual overvoltage, and two-stage frequency protection for utility substations and industrial power systems in a compact, withdrawable plug-in design.

Key features at a glance:

• Pre-configured functions for voltage protection, reducing engineering effort and setup time
• Factory-tested delivery to shorten on-site commissioning
• Withdrawable plug-in unit design for fast installation, testing, and replacement
• Powerful web-browser-based HMI with I/O matrix and visual selections
• IEC 61850 Editions 1 and 2 support, including binary GOOSE messaging
• Self-healing communication via optional second Ethernet bus using HSR/PRP
• Compact housing suitable for both new installations and retrofit projects

Practical Applications & How It Works

The REU611 voltage protection relay is built for a wide range of protection scenarios in modern power networks. It is widely deployed for busbar protection, power transformer monitoring, motor protection, and capacitor bank applications across both utility distribution networks and industrial facilities.

In operation, the relay continuously samples system voltage and frequency, executing pre-configured protection logic the moment defined thresholds are exceeded. Through the intuitive web-based HMI, operators can configure settings, monitor I/O status, and visualize the protection matrix without specialized software. The dual Ethernet bus with HSR/PRP redundancy ensures uninterrupted substation communication, making the relay a strong fit for IEC 61850-based automation architectures.

Why Source Through Spare Parts Map

Spare Parts Map is a global supplier of industrial spare parts, primarily serving customers across Europe. With more than 20 years of experience, we respond to inquiries quickly and ensure your products reach you without any problems. When you submit a Request Quote for the ABB REU611, our team provides transparent lead times, verified unit condition, and worldwide delivery options to keep your project on schedule.

Frequently Asked Questions

Q: What protection functions does the ABB REU611 support? A: The REU611 provides overvoltage, undervoltage, positive and negative sequence voltage, residual overvoltage, and two-stage frequency protection, all delivered through factory pre-configured standard applications.

Q: Is the REU611 suitable for retrofit installations? A: Yes. Its compact housing and withdrawable plug-in unit design make it ideal for both new substations and retrofit projects where installation space and commissioning time are limited.

Q: Which communication protocols are supported? A: The relay supports IEC 61850 Editions 1 and 2, including binary GOOSE messaging, with an optional second Ethernet port enabling HSR/PRP self-healing redundancy for critical substation networks.

Q: How do I request pricing and availability? A: Use the Request Quote option on this page to receive current availability, lead time, unit condition, and worldwide delivery options for the ABB REU611.
