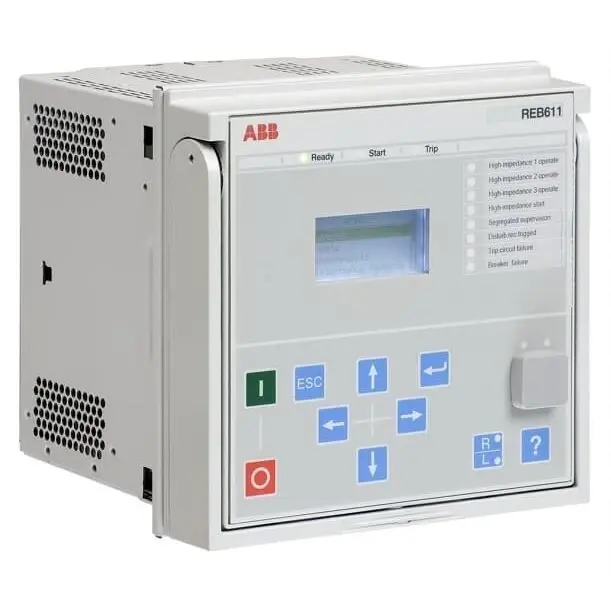

ABB REB611 Power Protection Relay

Product Overview

The ABB REB611 is a dedicated busbar protection relay designed for phase-segregated short-circuit protection, control, and supervision of single busbars. It functions as both a busbar and an ideal multipurpose backup protection relay, delivering a versatile solution for utility distribution networks and industrial power systems.

Key Features

• Preconfigured functions optimized for busbar protection applications
• Delivered factory-tested and preconfigured to reduce engineering and commissioning time
• Self-healing communication based on HSR/PRP using an optional second Ethernet bus
• Compact form factor suitable for both new installations and retrofit projects
• Withdrawable plug-in unit design enabling swift installation and testing
• Web-browser-based HMI with visual I/O matrix selections for intuitive operation
• Full support for IEC 61850 Editions 1 and 2, including binary GOOSE messaging
• Application-specific standard configuration for shorter commissioning cycles

Practical Applications

The REB611 is engineered for high-impedance-based protection schemes within utility substations and industrial power systems. It provides reliable phase-segregated short-circuit detection and supervision for single busbars, while also serving restricted earth-fault and residual earth-fault applications. This makes the relay well-suited for protecting critical rotating and static assets such as generators, motors, transformers, and reactors.

In real-world operations, the REB611 helps engineers and operators:

• Detect and isolate phase-segregated short-circuit faults before they escalate into system-wide events
• Monitor busbar integrity and ensure stable, uninterrupted power distribution
• Implement backup protection schemes without complex custom configuration
• Integrate seamlessly into modern IEC 61850-based substation automation architectures

As a global supplier of industrial spare parts with more than 20 years of experience, Spare Parts Map supports both urgent replacement requirements and planned maintenance cycles. Our team responds to inquiries quickly and ensures your REB611 reaches your facility without complications, primarily serving customers across Europe and worldwide. To confirm current availability, lead time, condition, and shipping options, simply Request a Quote through our platform.

Frequently Asked Questions

Q: What is the ABB REB611 protection relay used for? A: The ABB REB611 is a dedicated busbar protection relay used for phase-segregated short-circuit protection, control, and supervision of single busbars. It also supports restricted earth-fault and residual earth-fault protection for generators, motors, transformers, and reactors in utility and industrial power applications.

Q: Is the ABB REB611 delivered preconfigured? A: Yes. The REB611 is shipped preconfigured and factory-tested with an application-specific standard configuration. This significantly shortens engineering and commissioning time, making it a practical choice for both new installations and retrofit projects.

Q: Which communication protocols does the REB611 support? A: The REB611 supports IEC 61850 Editions 1 and 2, including binary GOOSE messaging. It also features self-healing communication based on HSR/PRP using an optional second Ethernet bus, providing redundancy and reliable network performance in substation environments.

Q: How do I order the ABB REB611 from Spare Parts Map? A: Spare Parts Map does not offer direct online purchasing. You can Request a Quote through our platform to receive current availability, lead time, condition details, and worldwide delivery options. Our team responds to inquiries quickly to ensure smooth procurement from initial request to final delivery.
