ABB RET615 Transformer Protection Relay

ABB RET615 Transformer Protection Relay – Overview & Key Features

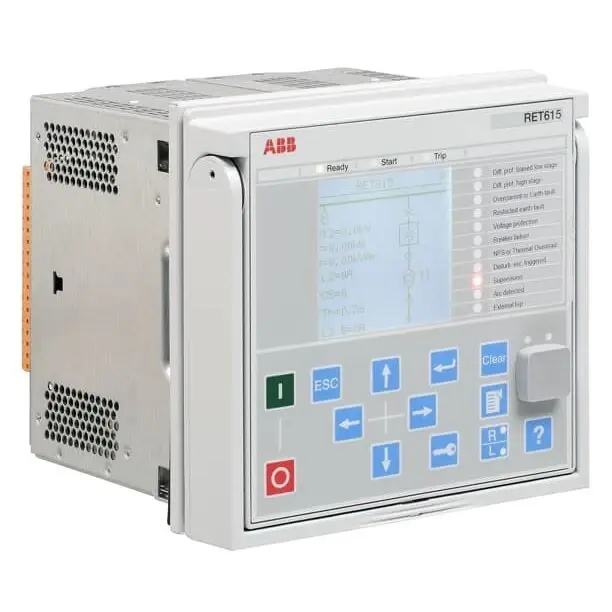

The ABB RET615 is a dedicated transformer protection and control relay engineered for two-winding power transformers in utility and industrial power distribution systems. It consolidates protection, control, measurement, and supervision into a single compact unit, reducing panel space and simplifying substation architecture while delivering advanced, fast differential protection with high inrush stability.

Key Features:

• Differential protection with integrated voltage protection and measurement functionality
• Supports both high-impedance and numerically low-impedance restricted earth-fault principles for flexible neutral earthing
• Optional arc protection with high-speed outputs for enhanced personnel and equipment safety
• Ready-made standard configurations matching common vector groups, enabling fast commissioning with project-specific tailoring
• Withdrawable plug-in unit design for swift installation, replacement, and testing
• Large graphical display showing customizable single-line diagrams (SLDs), accessible locally or through a web-browser-based HMI
• Full IEC 61850 Editions 1 and 2 compliance, including HSR, PRP, GOOSE messaging, and IEC 61850-9-2 LE for reduced wiring and supervised communication

Practical Applications & How It Works

The RET615 is deployed in distribution substations, industrial plants, and power generation facilities where reliable transformer protection is critical. Typical installation scenarios include:

• Two-winding power transformers in utility distribution networks
• Unit and step-up transformers at renewable energy and conventional generation sites
• Power generator-transformer blocks in industrial cogeneration facilities
• Industrial power distribution systems requiring compact, multifunctional protection in a single device

The relay continuously monitors transformer currents, voltages, and thermal conditions, executing fast and stable differential protection even during high inrush events. Native IEC 61850 support enables seamless integration with SCADA, energy management systems, and modern substation automation architectures, while optional arc-flash detection adds a critical safety layer for operators and assets.
