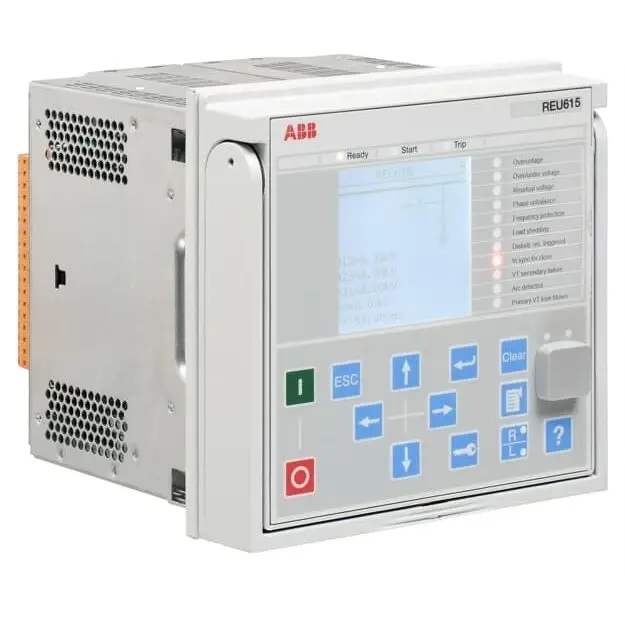

ABB REU615 Voltage Protection and Control Relay

ABB REU615 Voltage Protection and Control Relay — Overview & Key Features

The ABB REU615 is a compact, IEC-compliant voltage protection and control relay from ABB's Relion® product family and part of its 615 protection and control series. It is engineered for utility and industrial power distribution systems, including networks with distributed power generation, delivering precise voltage and frequency-based protection alongside automatic voltage regulation of power transformers equipped with motor-driven on-load tap changers.

Atomic Answer: The ABB REU615 is a panel-mount, IEC-standard digital voltage protection relay that monitors over-voltage, under-voltage, frequency, and power. It enables automatic voltage regulation for power transformers, busbar supervision, and load shedding in utility and industrial networks.

Key Features:

• Exclusively designed for automatic and manual voltage regulation, or alternatively busbar undervoltage and overvoltage supervision, load shedding, and load restoration
• Ready-made standard configurations for fast commissioning with flexible tailoring capabilities
• Withdrawable plug-in unit for swift installation and testing
• Large graphical display showing customizable single-line diagrams (SLDs), accessible locally or through a web-browser-based HMI
• Programmable digital logic for application-specific protection schemes
• Compact panel-mount form factor suitable for retrofits and new switchgear installations
• Extensive ABB life-cycle services for long-term operational support

Practical Applications & How It Works

The REU615 addresses voltage stability challenges across utility substations, industrial plants, and renewable energy interconnections. It continuously samples busbar voltage and frequency, compares them against user-configured setpoints, and issues trip or control commands to circuit breakers and transformer tap changers when thresholds are exceeded.

Primary Use Cases:

• Automatic voltage regulation of power transformers with motor-driven on-load tap changers
• Busbar overvoltage and undervoltage supervision in distribution switchgear
• Load shedding and load restoration in networks with distributed power generation
• Frequency-based protection in islanded or grid-connected microgrids
• Voltage monitoring across industrial power distribution networks

How It Operates: Operators interact with the relay through the local graphical display or remotely through the embedded web-browser HMI, allowing parameter configuration, status review, and event-log analysis without specialized engineering software. The withdrawable plug-in design simplifies commissioning, periodic testing, and replacement.

Why Source the ABB REU615 from Spare Parts Map

Spare Parts Map is a global supplier of industrial spare parts, primarily serving customers across Europe, with more than 20 years of experience sourcing hard-to-find and legacy automation components. We understand the urgency of keeping protection systems operational, which is why we respond to inquiries quickly and ensure your products reach you without logistical complications. When you need a genuine ABB REU615 relay, our team streamlines the request, verifies availability, and coordinates international delivery to your facility. To obtain pricing, lead time, condition, and shipping options, submit a Request Quote form and our specialists will respond promptly.

Frequently Asked Questions (FAQ)

Q: What protection functions does the ABB REU615 support? A: The REU615 supports voltage and frequency-based protection, including overvoltage, undervoltage, and frequency monitoring. It also performs automatic voltage regulation of power transformers with motor-driven on-load tap changers, as well as load shedding and restoration functions for distributed generation networks.

Q: Is the ABB REU615 suitable for both utility and industrial applications? A: Yes. The relay is engineered for utility substations, industrial power distribution systems, and networks with distributed power generation, including microgrids and renewable interconnections where voltage and frequency stability are critical.

Q: How is the REU615 installed and configured? A: The relay uses a withdrawable plug-in unit for panel-mount installation, enabling fast installation and testing. Configuration is performed through the local graphical display or web-browser-based HMI using ready-made standard templates that can be tailored to specific applications.

Q: How can I request pricing and availability for the ABB REU615? A: Submit a Request Quote form through Spare Parts Map. Our team will respond quickly with current pricing, lead time, condition (new or refurbished), and worldwide delivery options for the ABB REU615 protection relay.
