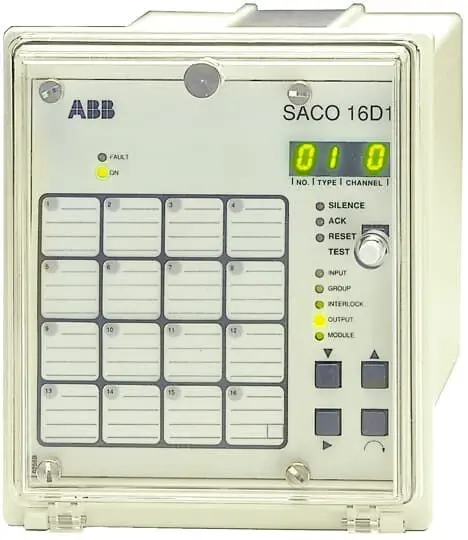

ABB SACO 16D1 Alarm Annunciator for Marine Applications

Product Overview

The ABB SACO 16D1 is a flexible, field-customizable 16-channel digital annunciator unit engineered for supervising alarm and signalling contacts in power plants, substations, industrial process installations, offshore platforms, and marine vessels. It delivers immediate fault recognition, fault identification, and visual and audible alarm signalling the moment an abnormal process condition occurs, giving operators full control of critical operations.

Key features include:

• 16-channel digital input signal supervision for comprehensive process monitoring
• Supports both normally open (NO) and normally closed (NC) contact activation
• Built-in hardware and software self-supervision for maximum operational reliability
• Four-digit front panel display providing clear first-out alarm indication
• Visual and audible alarm outputs for immediate operator notification
• Standalone operation or networked via fibre-optic bus for system-wide integration
• Approved for offshore installations and marine classification applications
• Designed to perform in demanding environmental conditions including vibration, temperature variation, and humidity

Practical Applications & How It Works

The SACO 16D1 acts as the central nervous system for process alarm management. When an abnormal condition triggers a field contact—whether a pressure switch, level sensor, breaker auxiliary, or process interlock—the unit instantly captures the event, displays the affected channel number on the four-digit readout, and activates the matching LED indicator and audible horn. The first-out indication ensures operators immediately identify the originating fault instead of chasing downstream symptoms in a cascade.

Typical deployment scenarios include:

• Engine rooms and bridge consoles aboard commercial vessels where machinery alarms demand immediate attention
• Offshore oil and gas platforms where class-approved monitoring is mandatory
• Electrical substations where protection relay trip signals must be recorded and acknowledged
• Power plant control rooms managing boiler, turbine, and auxiliary equipment status
• Industrial process plants supervising pump status, valve positions, and interlock chains

Units can operate independently as standalone alarm panels or be interconnected through the fibre-optic bus to form complete supervision, event sequence reporting, and data acquisition systems across an entire facility.

Why Source Through Spare Parts Map

Spare Parts Map is a global supplier of industrial spare parts with over 20 years of experience, primarily serving the European market. Our team responds to inquiries quickly and ensures your products reach you without complications. When you need a genuine ABB SACO 16D1 annunciator or compatible spares, simply request a quote to receive confirmation on availability, condition, lead time, and worldwide delivery options tailored to your project schedule.

Frequently Asked Questions

Q: What contact types does the ABB SACO 16D1 accept? A: The unit accepts both normally open (NO) and normally closed (NC) contact inputs across its 16 channels, allowing flexible integration with virtually any field sensor or signalling device.

Q: Is the SACO 16D1 suitable for marine and offshore environments? A: Yes. The annunciator is formally approved for offshore installations and marine applications and is engineered to withstand demanding environmental conditions including vibration, temperature variation, and humidity typical in those settings.

Q: Can multiple SACO 16D1 units be networked together? A: Yes. Units can operate as independent standalone panels or be connected via a fibre-optic bus to form complete supervision, event sequence reporting, and data acquisition systems across larger installations.

Q: How does the first-out alarm indication work? A: When multiple alarms occur in rapid succession, the four-digit front panel display locks onto the first triggered channel, allowing operators to identify the originating fault rather than the downstream consequences.

Q: How do I obtain a quote for the ABB SACO 16D1? A: Contact Spare Parts Map directly with your part number and project requirements. Our team responds quickly with current availability, pricing, condition, and worldwide delivery options for your approval.
